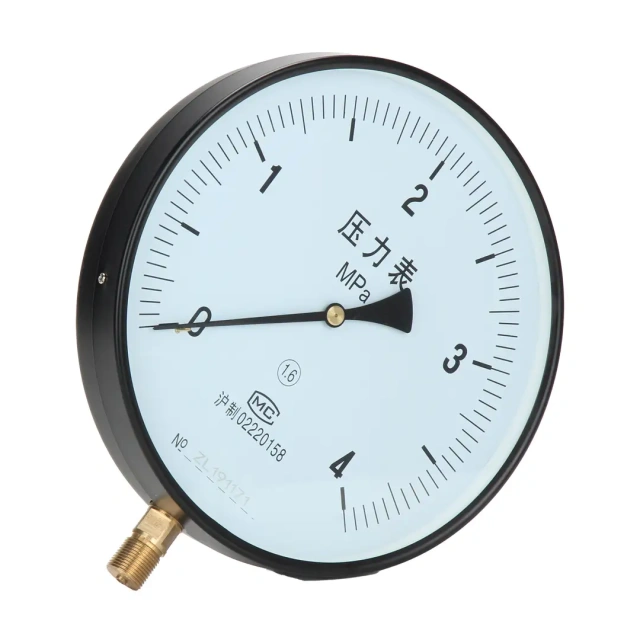

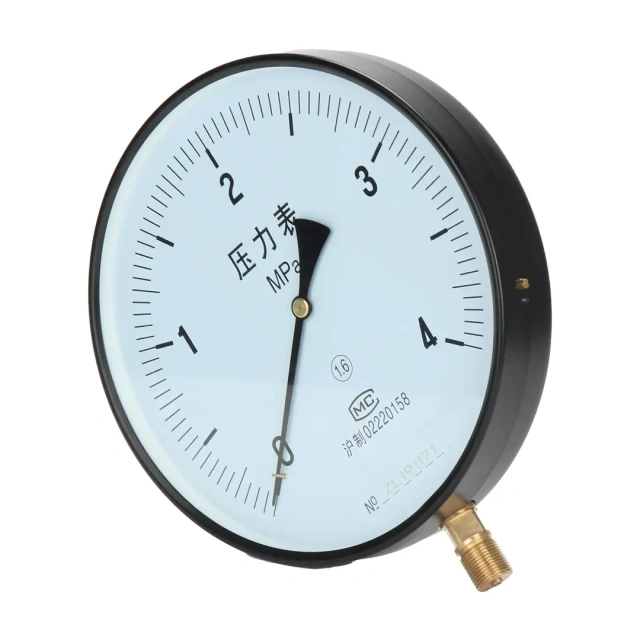

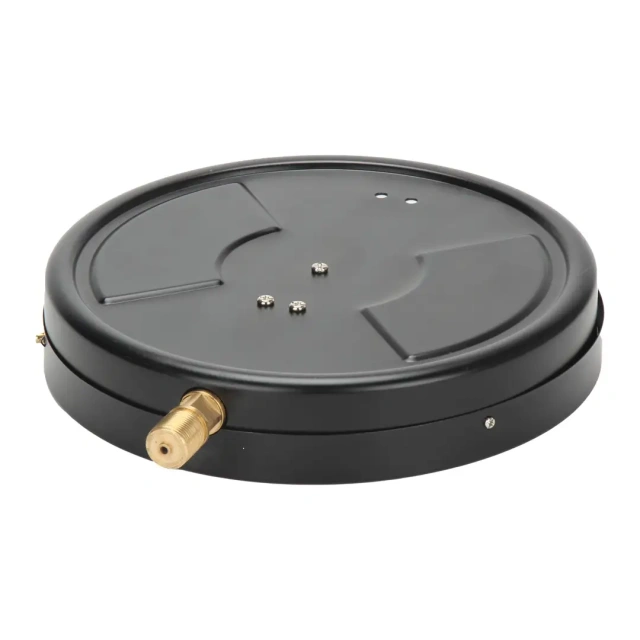

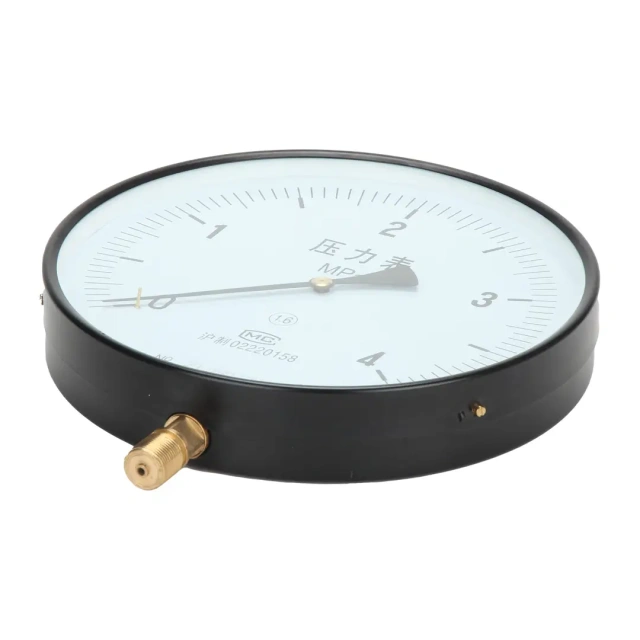

Y250 General Pressure Gauge 250mm

PRODUCT NAME	General Pressure Gauge
PRODUCT MODEL	Y250
ACCURACY CLASS	1.60%

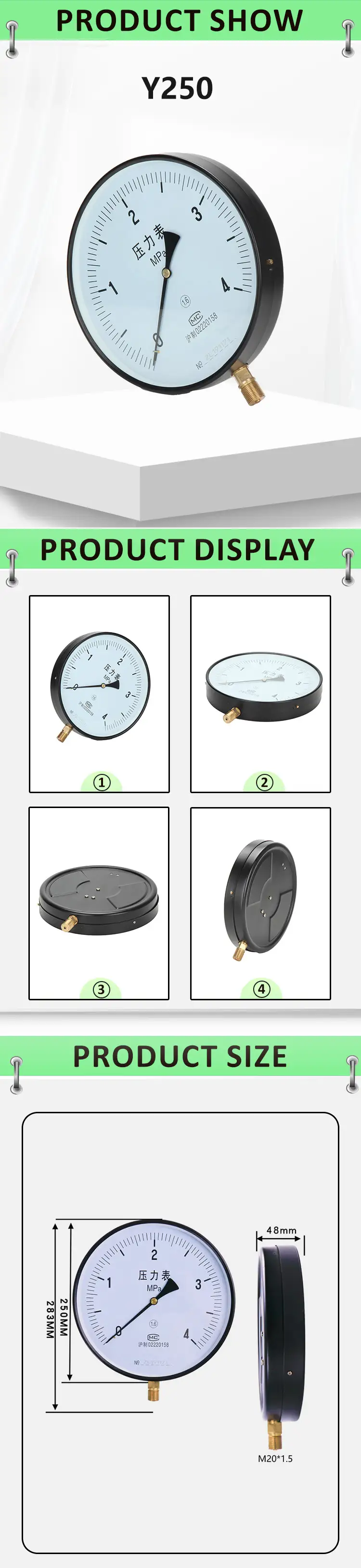

DIAL DIAMETER	250mm
GLASS DIAMETER	230mm
FITTING TYPE	Thread M20*1.5 (SUPPORT OEM)
AMBIENT TEMPERATURE	-40~70℃
MEASURE RANGE	0~0.1MPa(1KG) 0~0.16MPa(1.6KG) 0~0.25MPa(2.5KG) 0~0.4MPa(4KG) 0~0.6MPa(6KG) 0~1MPa(10KG) 0~1.6MPa(16KG) 0~2.5MPa(25KG) 0~4MPa(40KG) 0~6MPa(60KG) 0~10MPa(100KG) 0~16MPa (160KG) 0~25MPa(250KG) 0~40MPa(400KG) 0~60MPa(600KG)	-0.1~0MPa[Vacuum] -0.1~0.15MPa -0.1~0.3MPa -0.1~0.5MPa -0.1~0.9MPa -0.1~2.4MPa -0.1~1.5MPa Other ranges can be customized
INSTALLATION MODE	Radial mounting
MATERIAL	Chrome-plated Iron & Copper Alloy
CERTIFICATION	CE
RELATIVE HUMIDITY	<80%
WEIGHT	1.25KG
Packaging parameter	27.5*27.5*7.5 CM
CUSTOMIZED	OEM&ODM

•Competitiveness

After years of development, we have become one of the leading companies in the industry. Over 200 companies from around the world purchase our products year-round, and our excellent product quality and top-notch customer service have earned widespread trust and praise. Our product line covers various types of pressure gauges, differential pressure gauges, pressure transmitters, thermometers, and more, with over 1,000 product models produced to date, providing the most detailed solutions.

•Application Scenarios

Our products are widely used in multiple industries, such as oil and gas, environmental engineering, building automation, precision electronics, medical, chemical, power, water treatment, pharmaceuticals, food materials, HVAC, aerospace, manufacturing, construction, and engineering. They are primarily used for measuring and monitoring parameters such as pressure and differential pressure. Whether in harsh industrial environments or highly precise production lines, our products can provide accurate and reliable pressure measurement solutions

•Company Introduction

Zhejiang Sapling Instrument Co., LTD is a specialized enterprise focused on the design, manufacture, and sales of high-quality pressure gauges and differential pressure gauges. The company was established in 2012 and is headquartered in Wenzhou, Zhejiang, China. Our factory covers over 6,000 square meters of production area, and we employ more than 200 people

•Packaging and Transportation

Our products come with a variety of packaging options, and we support customization based on customer requirements. Customized packaging ensures that products receive optimal protection during transit, reducing the risk of damage. It also allows for brand presentation or compliance with specific market demands. Once production orders are completed, our professional logistics team conducts thorough quality checks and carefully packages the products to ensure they remain intact during transportation

We collaborate with multiple reliable logistics companies to arrange sea, air, or land transportation according to customer needs, ensuring that products are delivered safely and on time. We also offer full tracking services, allowing customers to monitor the status of their shipments in real-time and ensuring timely delivery
